TRASH BAG RACK WOOD MADE

This is a wood project that is practical and eazy! I think we all use our plastic bags from the store to put trash into, and this little rack is a handy holder for the bag while filling with trash.
Materials
10 ft. of 1/2" x 1 1/2" pine
5ft. of 5/8" wood dowel
4ft. of 1/2" wood dowel
1ft. of 5/16" wood dowel
2 bolts 3/16" x 1 1/4" with nuts
Tools
compass(for drawing circles)
hand saw(power saw if you have)
corless drill with 5/8", 1/2", 5/16" and 3/16" drill bits
1. Cut the 1/2" x 1 1/2" pine into four 24" pcs, and two 11" pcs.
2. Cut 5/8" dowel into two 10 5/8" pcs, two 9 9/16" pcs, one 8 1/2" pc, & two 4 1/2" pcs.
3. Cut 1/2" dowel into five 8 1/2" pcs.
4. Cut 5/16" dowel into four 1 1/2" pcs.

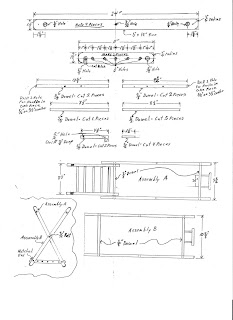

5. Drill all required holes in flat pcs. and dowels as shown on attached drawing.
6. Assemble section labeled Assembly A on the drawing.
7. Asemble section labeled Assembly B on the drawing.
8. Fit the Assemblies A & B together as on drawing and incert 3/16" bolt as shown.
Note how the rack folds up for eazy storage. (highlight & print drawing)
